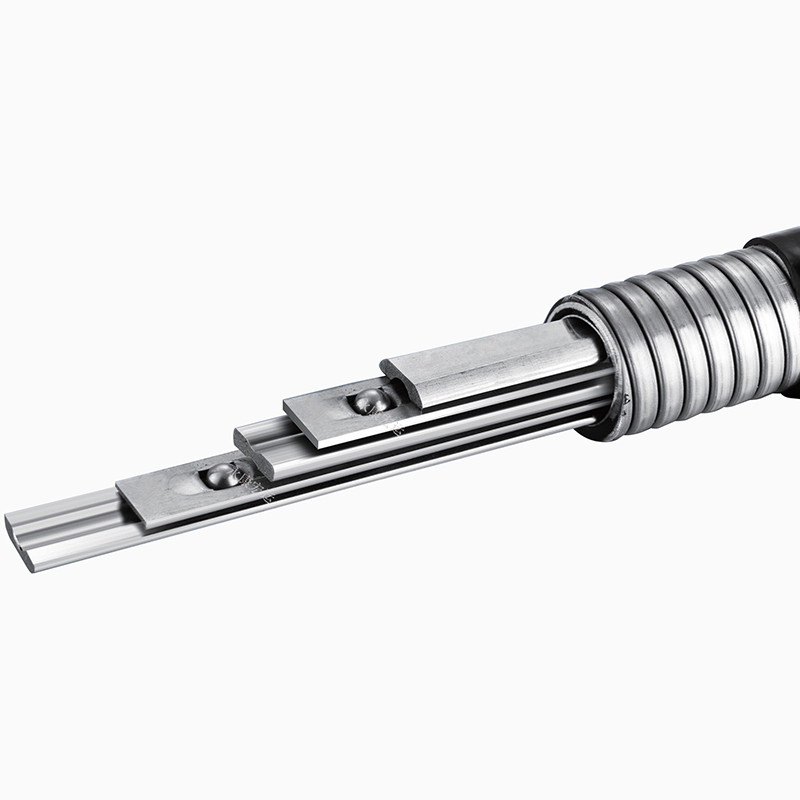

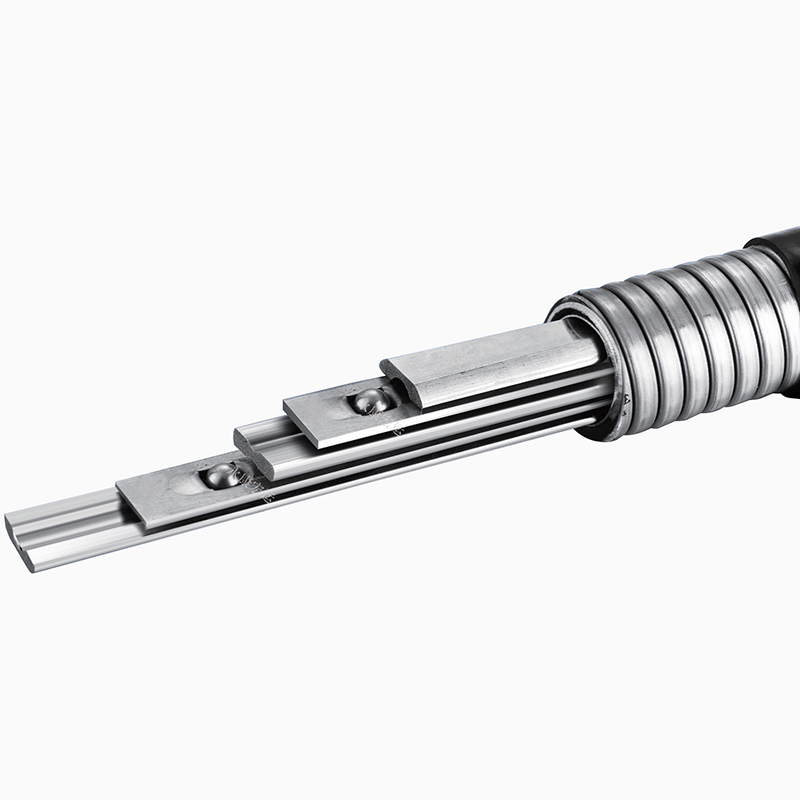

The mechanical, ball bearing, flexible remote control transfers linear lifting movements of up to 200 mm. Only the ball-bearing principle used enables loads of 6000 N pressure and 15000 N traction so easily and smoothly.
WHOLEWIN Ball Bearing Cable is laid spatially on three levels in a system of bends with low bending radii and is 97% effective, particularly under heavy payloads.
Stainless steel inner components guarantee an optimal life-span with high fatigue resistance under reverse bending processes.
WHOLEWIN Ball Bearing Cable replaces, in many cases, complex solid rods, hydraulic, pneumatic or electric transfer devices and also the energy supply machinery required to power them.
WHOLEWIN Ball Bearing Cable is manufactured in lengths ready to install.
The advantages at a glance:
· Flexible
· Can be laid on three levels
· Works on compression and tension
· Operation ratio almost 1
· No maintenance or lubrication necessary
· Comfortable installation
· Indifferent to fluctuations in temperature
· Works reliably and without interruption, even at lengths of over
20 Meters and spatial laying
Series | R=(mm) | Bending radius(mm) |
95 | 9.3 | 80 |
125 | 12.5 | 95 |
145 | 14.5 | 130 |
200 | 20 | 200 |
240 | 24.5 | 250 |
