1. The shell is made by Gravity casting, have good structure,stable sealing performance.
2. The oil cooler adopts a naked tube ( with no rolled fins on the surface) type heat transfer tube,have large cooling area and nice cooling effect.

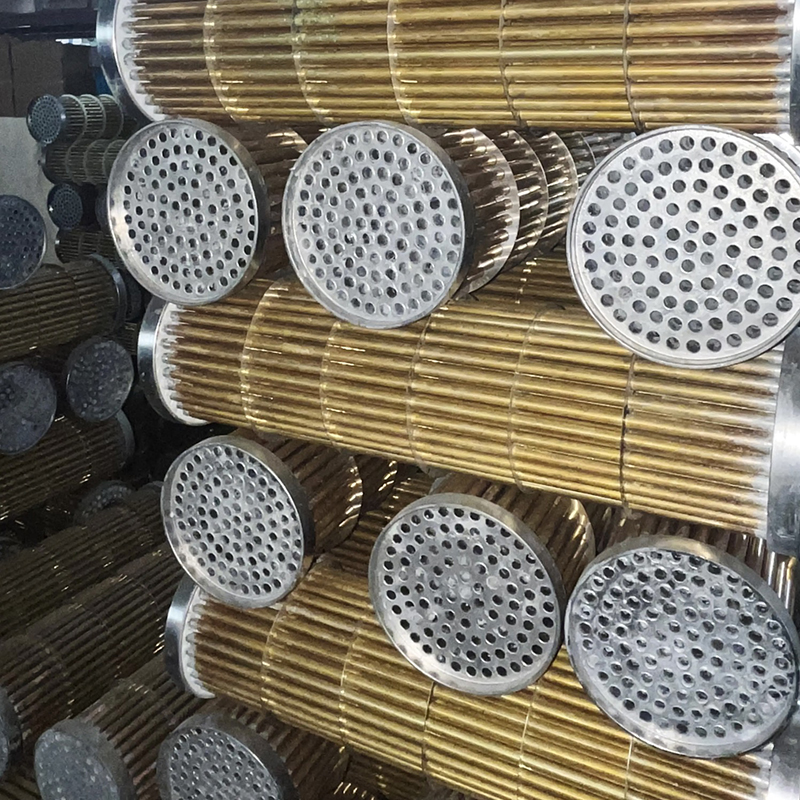

3. The cooling pipe adopts high quality brass pipe and processed into finned radiating fin, has strong corrosion proof ability and high intensity.
4. 100% inspection before shipping, Make sure all the oil cooler is not leakage.
5. The oil cooler is widely used in finishing, transport,working,special boats, Ocean large-power vessels and etc.

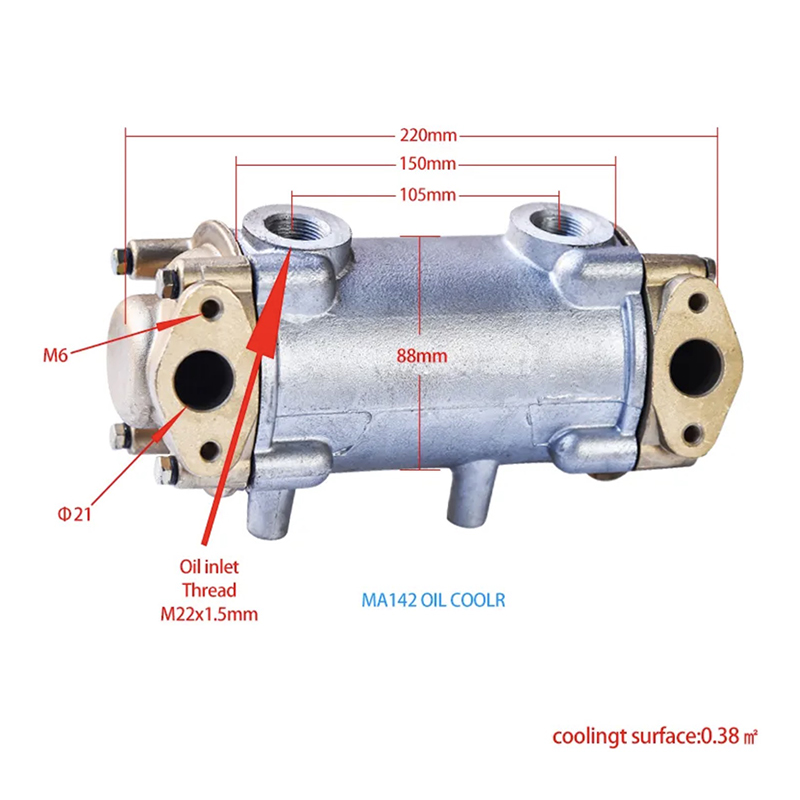

Item Name | MA142 marine oil cooler |
Model | DK7204，MA142 |
MOQ | 1 PCs |
Cooling surface | 0.38㎡ |
Working medium | oil |
Working oil temperature | 75℃ |
Working oil pressure | 1.3 Mpa |
Oil flow | 0.6m³/h |
Water temperature | 32℃ |
Cooling water flow | 1.5m³/h |
Water pressure | 0.2 Mpa |
Heat exchange capacity | 2543W |
